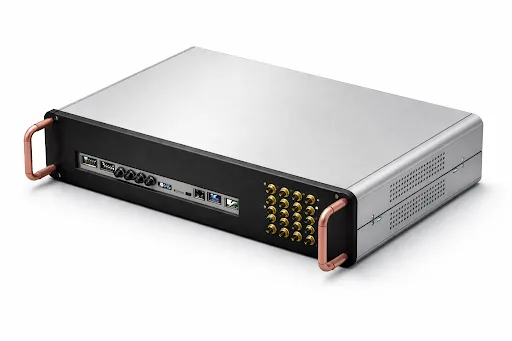

The xtr8 is a software-defined radio
Provides reliability and fault-tolerance for deployment in large-scale and distributed wireless systems.
XTR8 is a compact, high-channel-density SDR platform built for next-generation wireless systems. With wideband RF coverage, powerful FPGA processing, high-speed interfaces, and advanced synchronization, XTR8 delivers reliable, scalable, and remotely manageable SDR performance.
| Image / File | Title | Details |
|---|---|---|
| — | RF Capabilities |
8 TX, 8 RX | 30 MHz to 6 GHz | Up to 400 MHz bandwidth per channel |
| — | Baseband and RF Processing |
AMD RFSOC Platform | Quad-core ARM and dual-core Cortex-R5F with 4 GB DDR4 RAM - High speed ADC/DAC |
| — | Software |
MATLAB GNU Radio C/C++ Python |
| — | Synchronization |
10M Clock ref PPS time ref Multi SDR sync Ext. TX, RX LO input |
| — | Peripheral Interfaces |
2 QSFP, 1 SFP RJ45 (1 GbE) 1 Micro-USB3.0 1 Micro-USB (serial console, JAG) 1 Display port |
| — | Power |
230V AC (12 V, 5A DC model available on demand) |
| — | Form Factor |
Dimensions: 350 x 170 y 55 mm 3Kg |
